🌷 Plot Meter App – नक्शे में दूरी और क्षेत्रफल नापने

---

📏 Plot Meter Land Measurement App

🗺️ How to Measure Distance & Area from a Map – Step by Step

✅ Step 1: Scan the Map

First, take the plot / land map you have.

🖨️ Scan it using a print–scanner machine

💾 Save the file as PDF or Image (JPG / PNG)

⚠️ Important:

The map must be machine-scanned

❌ Do NOT use photos clicked from a mobile phone

✅ Step 2: Upload the Map

Open the Plot Meter App

Tap on Upload Map

Select the scanned PDF or Image file

✅ Step 3: Open the Map

After uploading, the map will open on the screen.

Now you are ready to configure settings.

⚙️ Step 4: Open Settings

After the map opens:

👉 Go to Settings

👉 Carefully set all options as explained below

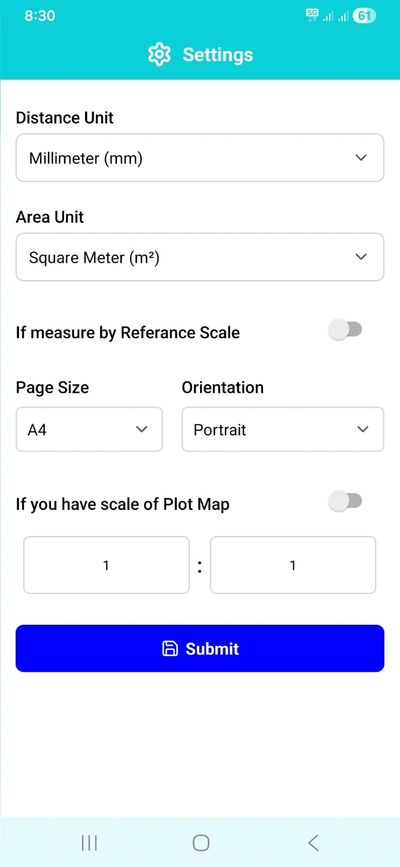

⚙️ Step 5: Configure Settings Correctly

1️⃣ Distance Unit

Select the unit in which you want to see distances:

Meter

Feet

Kilometer

2️⃣ Area Unit

Select the unit in which you want to see area:

Square Meter / Square Feet

Acre

Hectare

Bigha

Dismil

🌍 Local Units (Very Important)

If you want results in local units

(e.g. Bigha, Katha, Dhoor, Dismil):

Open Menu

Go to Setting Location

Select your State

Select your District

Tap Submit / Save

✅ The app will automatically show

local distance and area units based on your region.

3️⃣ Paper Size

⚠️ This is not the original paper size,

but the paper size used while scanning the map.

Examples:

A4

A3

A0

📝 Note:

If the map is downloaded from Bhu Naksha / Geo Portal,

select “Bhu Naksha” as Paper Size.

4️⃣ Orientation

Choose according to map direction:

Landscape → if the map is horizontal

Portrait → if the map is vertical

📐 Step 6: Set Scale (Most Important Step)

🔘 “If you have scale of the Plot Map” toggle

👉 You will see two types of scale

👉 You need to fill only ONE case

👉 The other section may remain filled or empty – no problem

👉 The app uses only the active (visible) scale

✅ Case 1: Length Scale

If the map shows:

1 cm = 40 meter

1 cm = 20 meter

Then:

Turn the toggle ON

Enter the Length Scale correctly

✅ Case 2: Ratio Scale

If the map shows:

1 : 4000

1 : 2000

Then:

Keep the toggle OFF

Enter the Ratio Scale correctly

⚠️ Scale Clarification

✔ Enter only the scale mentioned on the map

✔ No need to fill both scale types

✔ No need to clear the other section

✔ Only the active scale is used for calculation

🔵 Step 7: Submit Settings

After entering all settings and scale correctly:

👉 Tap the Submit button

✍️ Step 8: Start Measurement

Now you can:

✔ Draw the plot boundary

✔ Measure each side distance

✔ Calculate the total plot area

📐 Results will be accurate and reliable.

⭐ Important Tips

✔ Always use a scanned map

✔ Select correct Paper Size and Scale

✔ Wrong scale = wrong measurement

✔ Use correct toggle ON / OFF

✔ Zoom in while placing markers

📲 Plot Meter App

Easy, fast, and reliable land measurement solution ✨

Thank you

Plot Meter Technologies Team
